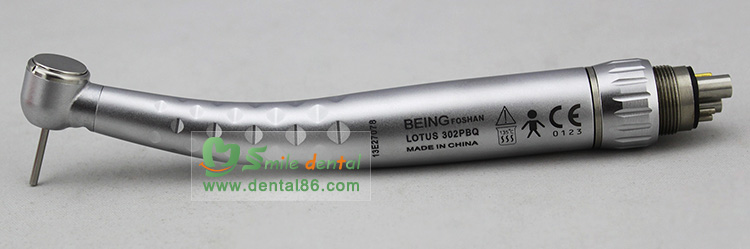

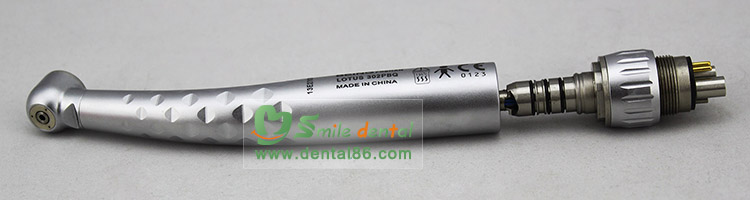

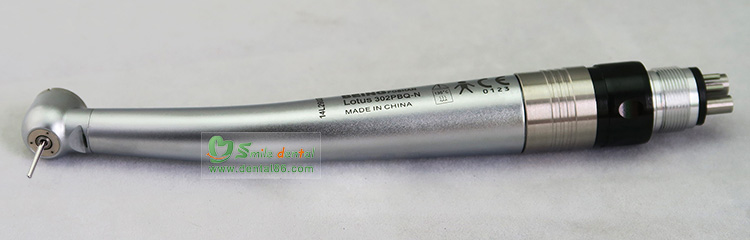

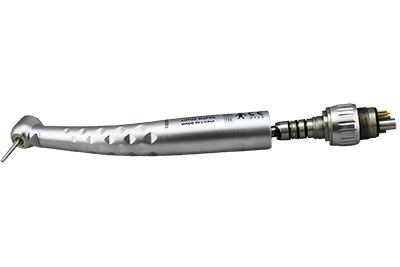

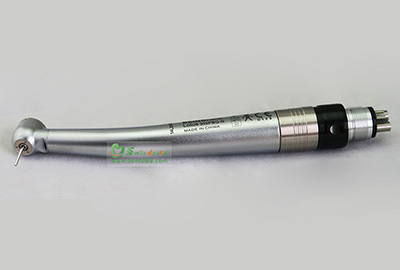

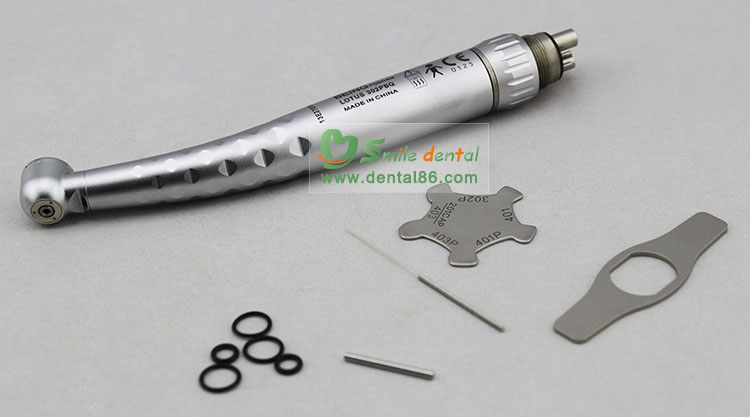

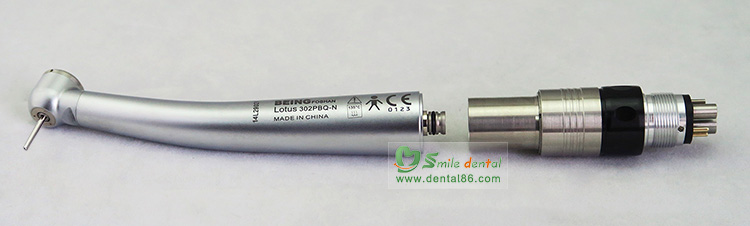

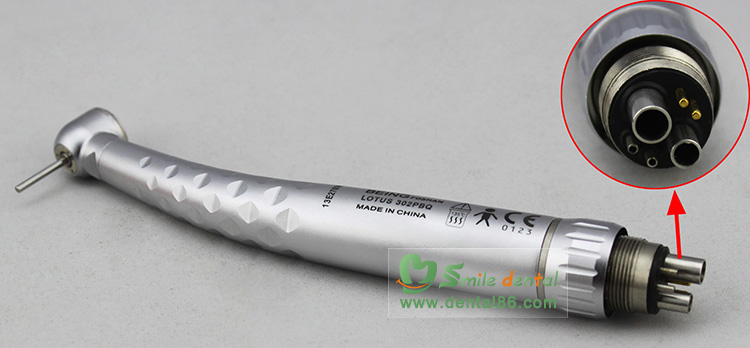

Fiber Optic Handpiece with Kavo type Coulping

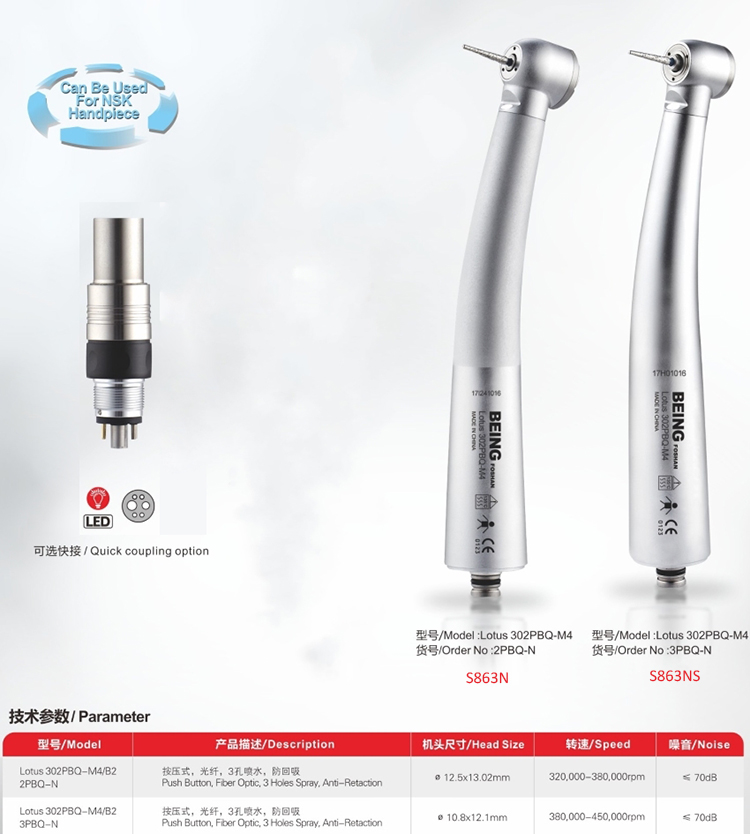

S863,S863S,S863N,S863NS

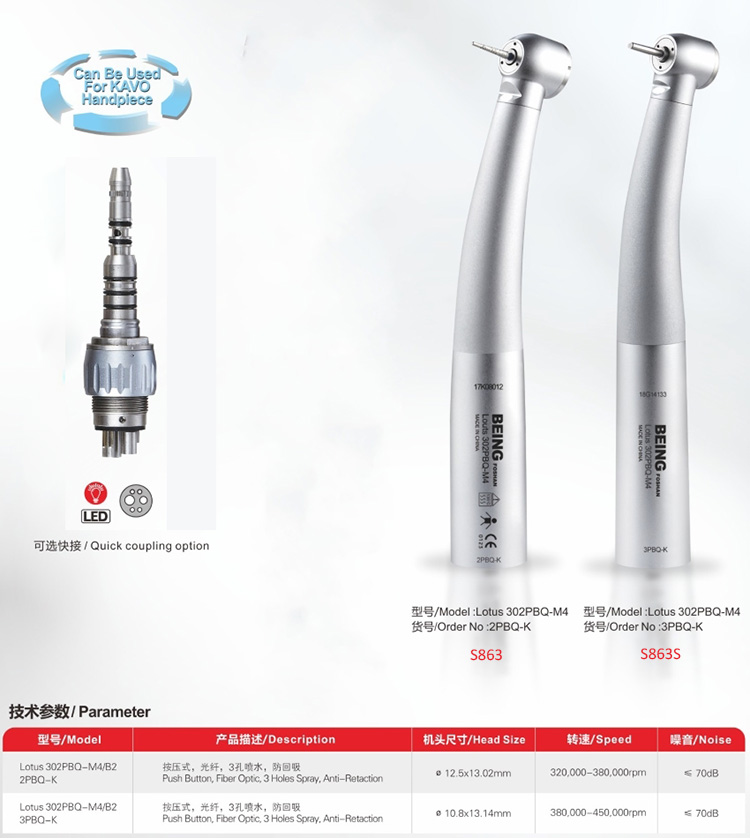

TECHNICAL PARAMETER

DESCRIPTION	Push button type fibre optic high speed handpiece, triple water spray, anti-retraction system, with quick coupling
AIR PRESSURE AT THE BACK END OF HP	206~231 KPa (2.1~2.35 kgf/cm2)
AIR PRESSURE AT THE GAUGE IN THE DENTAL UNIT	240-294 KPa (2.45-3.0 kgf/cm2)
WATER PRESSURE	198Kpa (2 kg)
ROTATION SPEED	300,000-320,000 rpm
HEAD HIGHT	13.02 mm
HEAD DIAMETRE	φ12.5 mm
CHUCK TYPE	Push button
BUR APPLICABLE	φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
NOISE	≤70dB
INTENSITY OF LIGHT	25000 lx
SOURCE OF LIGHT	Haloid bulb
VOLT OF BULB	3.0~3.2 V
SAFETY CLASSIFICATION	B type application part
